LD Systems LDWS 1000 G2 BPW Sax radiomicrophone

VIDEO LD Systems LDWS 1000 G2 BPW Sax radiomicrophone Video #1

Rendi hind: 23.00 EUR/päev + KM 22%

The LD Systems WS 1000 G2 is an advanced LICENSE FREE* 96 channel true diversity UHF wireless microphone system delivering natural sound with a wide dynamic range, high S/N ratio and low THD in both the 823 - 832 and 863 - 865 MHz bands.

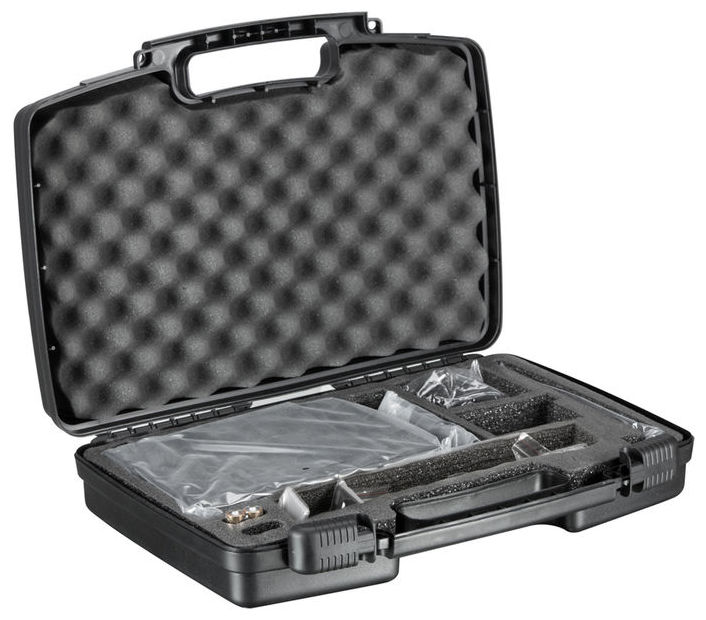

The WS 1000 G2 allows the use of up to 5 systems simultaneously and ships in various configurations. You can choose between dynamic or condenser handheld microphones, a beltpack transmitter with either a headset, lavalier-microphone, clip-on wind instrument microphone or guitar adaptor cable. It provides consistent audio transmission from 60 Hz to 16 kHz. Handhelds and beltpack feature convenient LCD indication of channel, group and battery status. Automatic channel scanning and the backlit multifunction receiver display facilitate system setup and operation. The operating time ranges up to 13 hours with high quality AA batteries. All WS 1000 G2 systems come with a rugged ABS plastic carrying case.

 * license free: ISM-Band license free in Europe, please check duplex gap on a country-by-country basis

Set composed of:

• LDWS1000G2BP
• LDWS1000G2R
• LDWS1000MW

Transmitter features:

• Model name: LDWS1000G2BP
• Product type: Transmitter
• Radio frequency range: 823 - 832 and 863 - 865 MHz
• Channels: 96 (8 groups of 12 channels)
• Inputs: mini-XLR (3-pin)
• Audio frequency response: 60 Hz - 16 kHz
• RF output: 10 mW
• Controls: Power On/Off
• Indicators: LC display
• Power supply: 2 x 1.5 V AA
• Operating time: up to 13 hrs., battery-dependent
• Width: 65 mm
• Height: 90 mm
• Depth: 24 mm

Receiver features:

• Model name: LDWS1000G2R
• Product type: Receiver
• Type: True Diversity
• Radio frequency range: 823 - 832 and 863 - 865 MHz
• Channels: 96 (8 groups of 12 channels)
• Antenna inputs: 2
• Antenna connector: TNC
• Frequency response: 60 Hz - 16 kHz
• Noise suppression: Squelch
• THD: < 1 %
• S/N ratio: > 100 dB
• Unbalanced audio output: XLR - 12 dBV (600 ohms) / 6.3 mm TRS - 18 dBV (3 kohms)
• Controls: Power On/Off, Set, Up, Down, ASC
• Indicators: LC display, 2 x 6-segment RF (A/B), antenna active (A/B), 7-segment AF
• Power supply: 12 - 18 V DC
• Width: 212 mm
• Height: 44 mm
• Depth: 160 mm
